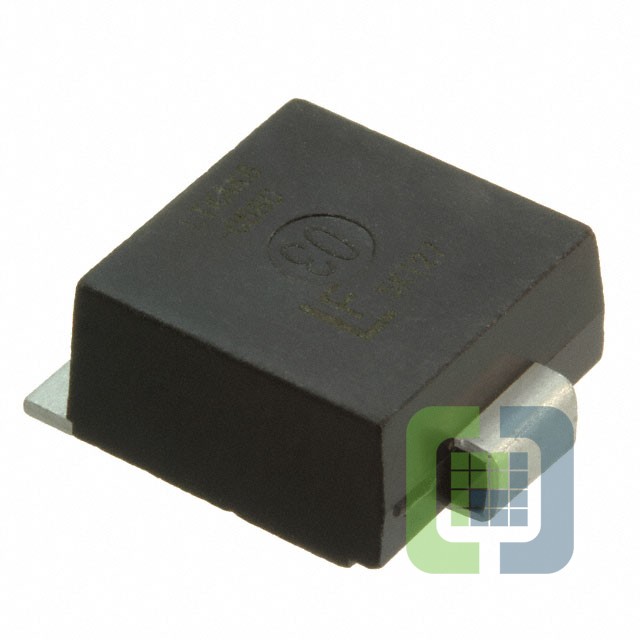

LTKAK10-086C-TP
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS 10KA RATED 86V BI SMTO218,
- CategoryTVS - Diodes
- Datasheet LTKAK10-086C-TP Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$33.7988
- 100$33.7988
Quote It
Technical Details
- Series:LTKAK10
- Package:Tube
- Part Status:Active
- Type:Zener
- Unidirectional Channels:-
- Bidirectional Channels:1
- Voltage - Reverse Standoff (Typ):86V
- Voltage - Breakdown (Min):95V
- Voltage - Clamping (Max) @ Ipp:157V
- Current - Peak Pulse (10/1000µs):10000A (10kA) (8/20µs)
- Power - Peak Pulse:-
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:6.5pF @ 10kHz (Max)
- Operating Temperature:-55°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:Nonstandard SMD
- Supplier Device Package:SMTO-218 Tab
