• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionTVS DIODE 8.5V 14.4V SMB
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 174

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:SMBJ
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Discontinued at Digi-Key
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):8.5V
  • Voltage - Breakdown (Min):9.44V
  • Voltage - Clamping (Max) @ Ipp:14.4V



  • Current - Peak Pulse (10/1000µs):41.7A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:SMB

Related Products


SMBJ8.5CA-13

TVS DIODE 8.5V 14.4V SMB

Call for price


SMBJ85A-13

TVS DIODE 85V 137V SMB

SMBJ85A-13 Datasheet

Call for price


SMCJ22A-13

TVS DIODE 22V 35.5V SMC

SMCJ22A-13 Datasheet

Call for price

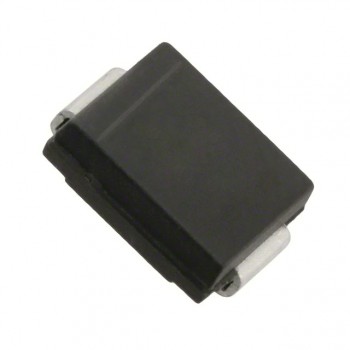

SMCJ40CA-13
