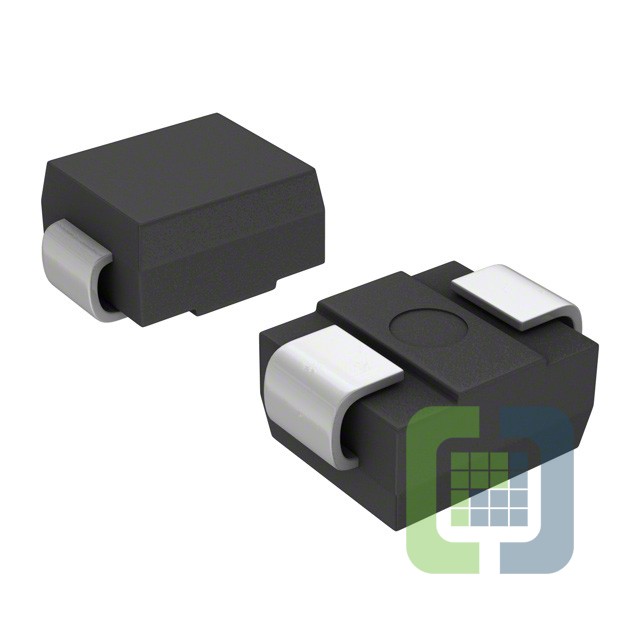

SMBJ20CHE3/52
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 20V 35.8V DO214AA
- CategoryTVS - Diodes
- Datasheet SMBJ20CHE3/52 Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Automotive, AEC-Q101, TransZorb®
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Zener
- Unidirectional Channels:-
- Bidirectional Channels:1
- Voltage - Reverse Standoff (Typ):20V
- Voltage - Breakdown (Min):22.2V
- Voltage - Clamping (Max) @ Ipp:35.8V
- Current - Peak Pulse (10/1000µs):16.8A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AA, SMB
- Supplier Device Package:DO-214AA (SMBJ)
