• Lifecycle status Active
  • RoHS RoHS Compliant

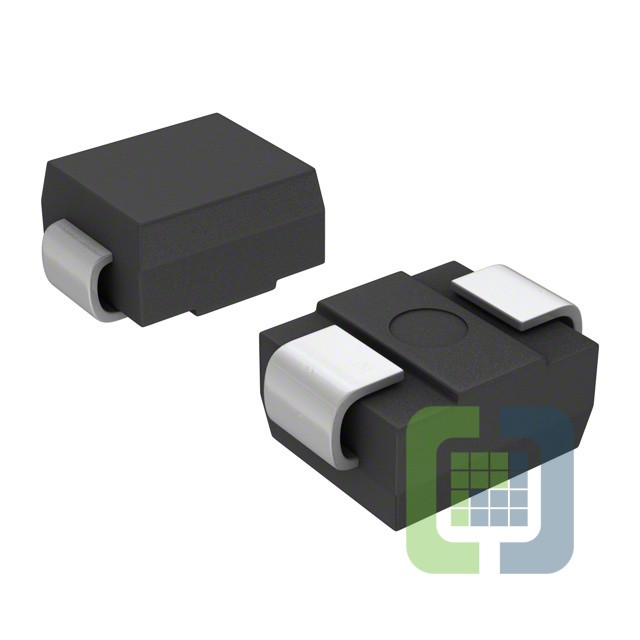

  • DescriptionTVS DIODE 8.5V 14.4V DO214AA
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 115

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:Automotive, AEC-Q101, TransZorb®
  • Package:Tape & Reel (TR)
  • Part Status:Discontinued at Digi-Key
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):8.5V
  • Voltage - Breakdown (Min):9.44V
  • Voltage - Clamping (Max) @ Ipp:14.4V



  • Current - Peak Pulse (10/1000µs):41.7A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:Automotive
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:DO-214AA (SMBJ)
