S9S12HZ256J3VAL-NXP

Rochester Electronics
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionIC MCU 16BIT 256KB FLASH 112LQFP
  • CategoryEmbedded - Microcontrollers
  • ECAD Model
  • Share
In Stock: 1,660

Can ship immediately

Pricing:
  • 1$22.87

Quote It

Technical Details

  • Series:HCS12
  • Package:Bulk
  • Part Status:Active
  • Core Processor:HCS12
  • Core Size:16-Bit
  • Speed:50MHz
  • Connectivity:CANbus, EBI/EMI, I²C, SCI, SPI
  • Peripherals:LCD, Motor control PWM, POR, PWM, WDT
  • Number of I/O:91
  • Program Memory Size:256KB (256K x 8)



  • Program Memory Type:FLASH
  • EEPROM Size:2K x 8
  • RAM Size:12K x 8
  • Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V
  • Data Converters:A/D 16x10b
  • Oscillator Type:Internal
  • Operating Temperature:-40°C ~ 105°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:112-LQFP
  • Supplier Device Package:112-LQFP (20x20)

Related Products


MCF5280CVM66J

IC MCU 32BIT ROMLESS 256MAPBGA

MCF5280CVM66J Datasheet
  • 1: $22.89000

MC9S12C128CFAE

IC MCU 16BIT 128KB FLASH 48LQFP

MC9S12C128CFAE Datasheet
  • 1: $22.91000
  • 10: $21.25112
  • 25: $20.46989

MMC2114CFCVF33

RISC MICROCONTROLLER, 32 BIT, FL

MMC2114CFCVF33 Datasheet
  • 1: $22.98000

M30281FCHP#U7B

IC MCU 16BIT 128KB FLASH 64LFQFP

M30281FCHP#U7B Datasheet
  • 1: $22.99000
  • 10: $20.90000
  • 25: $19.33250

ADUC812BSZ

IC MCU 8BIT 8KB FLASH 52MQFP

ADUC812BSZ Datasheet
  • 1: $22.99000
  • 96: $20.25503
  • 192: $17.84630

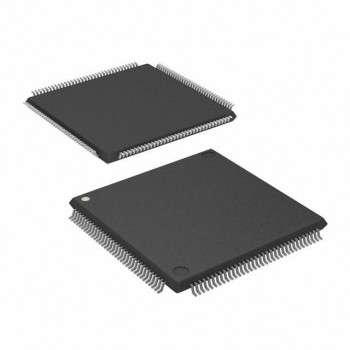

MC68331CAG25

IC MCU 32BIT ROMLESS 144LQFP

MC68331CAG25 Datasheet
  • 1: $23.07000
  • 300: $22.57650

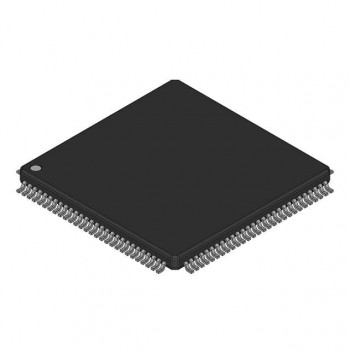

MC912DT128AVPV
