MK22FN1M0AVMD12

NXP Semiconductors
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionIC MCU 32BIT 1MB FLASH 144MAPBGA
  • CategoryEmbedded - Microcontrollers
  • ECAD Model
  • Share
In Stock: 491

Can ship immediately

Pricing:
  • 1$17.4
  • 10$16.13165
  • 25$15.53991
  • 160$13.9115
  • 640$12.57953
  • 1,120$11.69157

Quote It

Technical Details

  • Series:Kinetis K20
  • Package:Tray
  • Part Status:Active
  • Core Processor:ARM® Cortex®-M4
  • Core Size:32-Bit
  • Speed:120MHz
  • Connectivity:CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG
  • Peripherals:DMA, I²S, LVD, POR, PWM, WDT
  • Number of I/O:100
  • Program Memory Size:1MB (1M x 8)



  • Program Memory Type:FLASH
  • EEPROM Size:-
  • RAM Size:128K x 8
  • Voltage - Supply (Vcc/Vdd):1.71V ~ 3.6V
  • Data Converters:A/D 42x16b; D/A 2x12b
  • Oscillator Type:Internal
  • Operating Temperature:-40°C ~ 105°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:144-LBGA
  • Supplier Device Package:144-MAPBGA (13x13)

Related Products


M306N5FCTFP#U0

IC MCU 16BIT 128KB FLASH 100QFP

  • 1: $17.60000

MC56F8155VFGE

IC MCU 16BIT 256KB FLASH 128LQFP

MC56F8155VFGE Datasheet
  • 1: $17.63000
  • 360: $17.25500

S912XET256J2CAL

IC MCU 16BIT 256KB FLASH 112LQFP

S912XET256J2CAL Datasheet
  • 1: $17.64000
  • 10: $16.20658
  • 25: $15.53430

TMS320R2812PGFQ

IC MCU 32BIT ROMLESS 176LQFP

  • 1: $17.77000
  • 40: $17.77000

MC56F8156VFVE

IC MCU 16BIT 256KB FLASH 144LQFP

MC56F8156VFVE Datasheet
  • 1: $17.77000
  • 300: $17.40000

AT90USB1287-16AU

AT90USB1287 - RISC MICROCONTROLL

  • 1: $17.83000

S9S12DG12F1VFUE

IC MCU 16BIT 128KB FLASH 80QFP

  • 1: $17.85000
  • 420: $17.47250

TMS320F2808GGMS

IC MCU 32BIT 128KB FLASH 100BGA

  • 1: $18.01000
  • 10: $16.61300
  • 25: $15.86625

TMS320F28235ZJZA

IC MCU 32BIT 512KB FLASH 176BGA

  • 1: $18.02000
  • 126: $18.02000

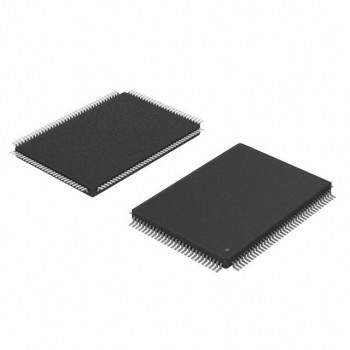

MC56F8335MFGE
