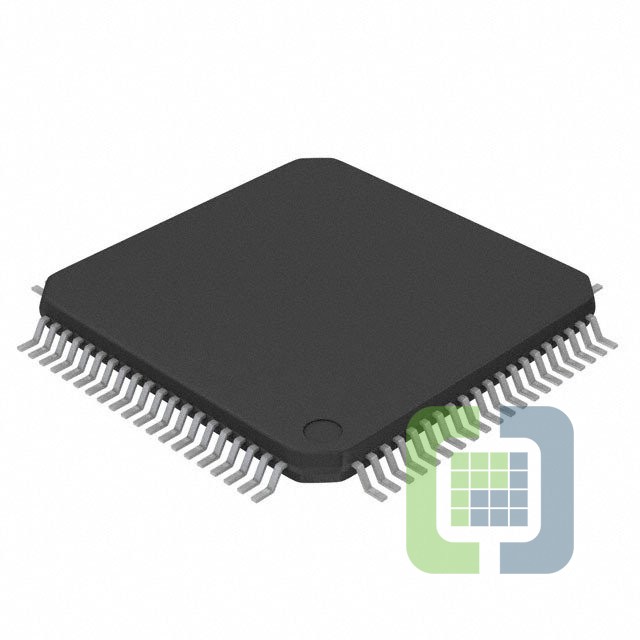

UPD78F1501AGC-GAD-AX
Renesas Electronics America
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC MCU 16BIT 96KB FLASH 80LQFP
- CategoryEmbedded - Microcontrollers
- Datasheet UPD78F1501AGC-GAD-AX Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:78K0R/Lx3
- Package:Tray
- Part Status:Active
- Core Processor:78K/0R
- Core Size:16-Bit
- Speed:20MHz
- Connectivity:CSI, I²C, LINbus, UART/USART
- Peripherals:DMA, LCD, LVD, POR, PWM, WDT
- Number of I/O:46
- Program Memory Size:96KB (96K x 8)
- Program Memory Type:FLASH
- EEPROM Size:-
- RAM Size:6K x 8
- Voltage - Supply (Vcc/Vdd):1.8V ~ 5.5V
- Data Converters:A/D 8x12b; D/A 2x12b
- Oscillator Type:Internal
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:80-LQFP
- Supplier Device Package:-
