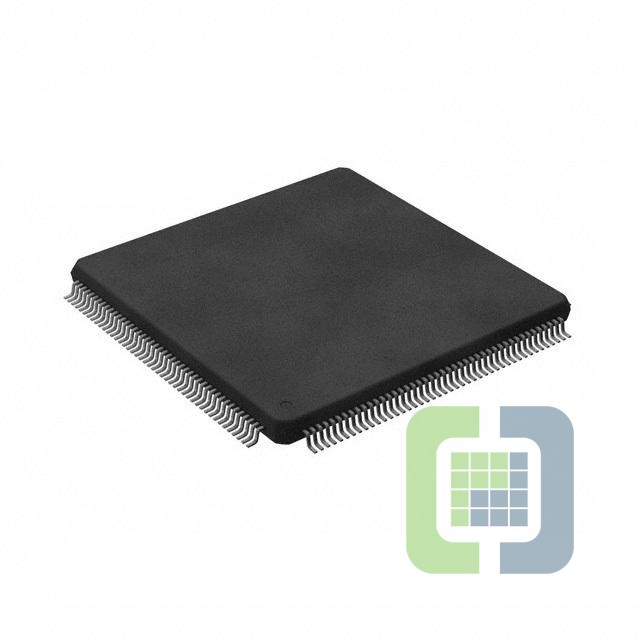

MB91F528UWCEQ-GSK5E2

Technical Details

• Series:FR MB91520
• Package:Tray
• Part Status:Obsolete
• Core Processor:FR81S
• Core Size:32-Bit
• Speed:80MHz
• Connectivity:CANbus, CSIO, EBI/EMI, I²C, LINbus, SPI, UART/USART
• Peripherals:DMA, LVD, POR, PWM, WDT
• Number of I/O:147
• Program Memory Size:2.0625MB (2.0625M x 8)

• Program Memory Type:FLASH
• EEPROM Size:64K x 8
• RAM Size:336K x 8
• Voltage - Supply (Vcc/Vdd):2.7V ~ 5.5V
• Data Converters:A/D 48x12b; D/A 2x8b
• Oscillator Type:External
• Operating Temperature:-40°C ~ 105°C (TA)
• Mounting Type:Surface Mount
• Package / Case:176-LQFP Exposed Pad
• Supplier Device Package:176-TEQFP (24x24)
