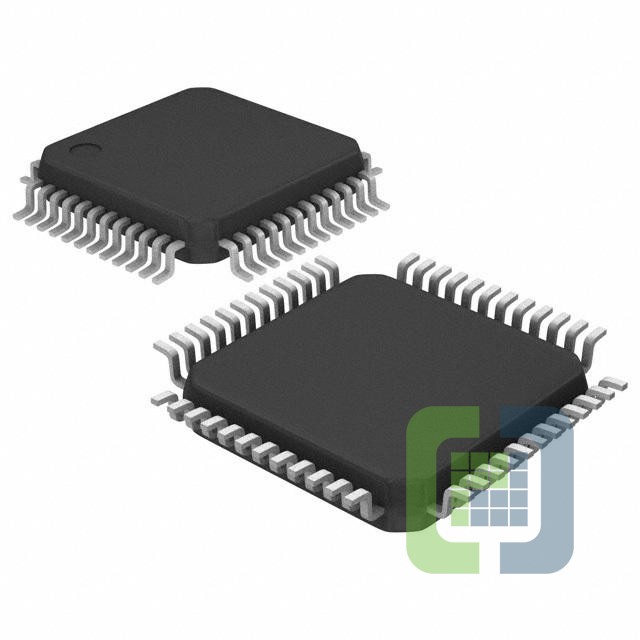

CY9BF564KPMC-G-JNE2

Technical Details

• Series:FM4 MB9B560L
• Package:TrayTray
• Part Status:Obsolete
• Core Processor:ARM® Cortex®-M4F
• Core Size:32-Bit
• Speed:160MHz
• Connectivity:CANbus, CSIO, I²C, LINbus, UART/USART, USB
• Peripherals:DMA, LVD, POR, PWM, WDT
• Number of I/O:33
• Program Memory Size:288KB (288K x 8)

• Program Memory Type:FLASH
• EEPROM Size:-
• RAM Size:32K x 8
• Voltage - Supply (Vcc/Vdd):2.7V ~ 5.5V
• Data Converters:A/D 8x12b; D/A 2x12b
• Oscillator Type:Internal
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:48-LQFP
• Supplier Device Package:48-LQFP (7x7)
