S6E2D55G0AGE20000

Technical Details

• Series:FM4 S6E2D5
• Package:Tray
• Part Status:Obsolete
• Core Processor:ARM® Cortex®-M4F
• Core Size:32-Bit
• Speed:160MHz
• Connectivity:CANbus, CSIO, EBI/EMI, I²C, LINbus, SPI, UART/USART, USB
• Peripherals:DMA, I²S, LVD, POR, PWM, WDT
• Number of I/O:98
• Program Memory Size:384KB (384K x 8)

• Program Memory Type:FLASH
• EEPROM Size:-
• RAM Size:36K x 8
• Voltage - Supply (Vcc/Vdd):2.7V ~ 3.6V
• Data Converters:A/D 24x12b
• Oscillator Type:Internal
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

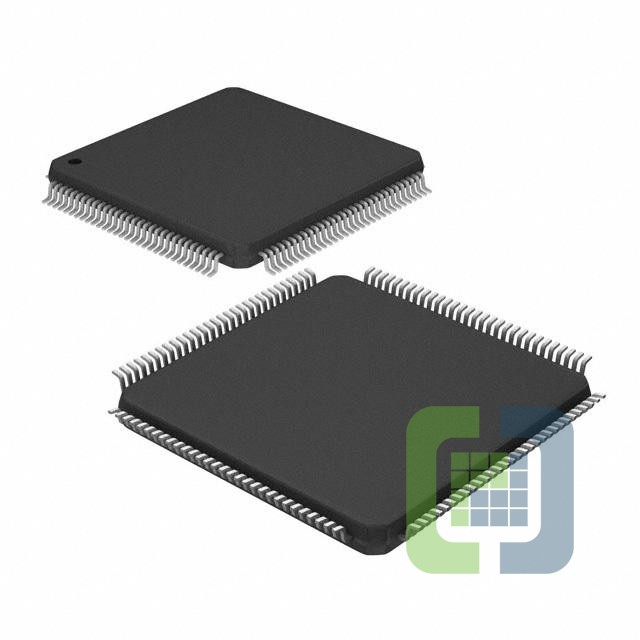

• Package / Case:120-LQFP
• Supplier Device Package:120-LQFP (16x16)
