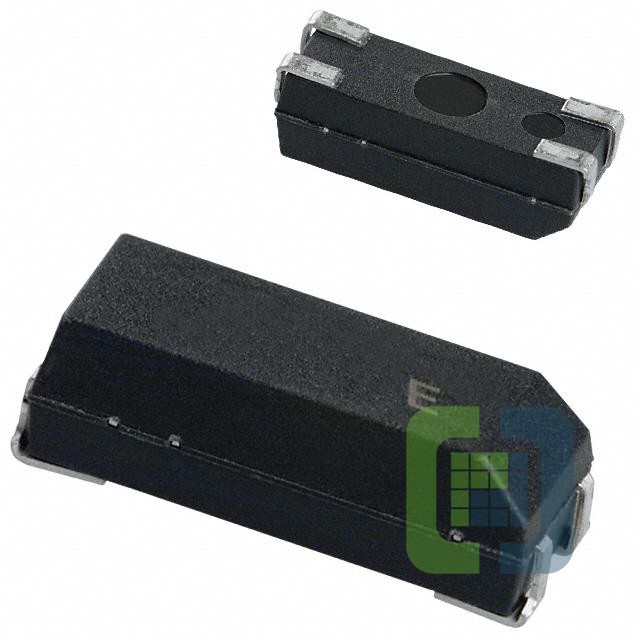

MA-506 8.0000M-D3:ROHS
Epson
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCRYSTAL 8.0000MHZ 22PF SMD
- CategoryCrystals
- Datasheet MA-506 8.0000M-D3:ROHS Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:MA-506
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:MHz Crystal
- Frequency:8 MHz
- Frequency Stability:±30ppm
- Frequency Tolerance:±50ppm
- Load Capacitance:22pF
- ESR (Equivalent Series Resistance):80 Ohms
- Operating Mode:Fundamental
- Operating Temperature:-20°C ~ 70°C
- Ratings:-
- Mounting Type:Surface Mount
- Package / Case:4-SOJ, 3.30mm pitch
- Size / Dimension:0.500" L x 0.200" W (12.70mm x 5.08mm)
- Height - Seated (Max):0.181" (4.60mm)
