CDRH60D45BT150NP-680MC

Sumida Corporation
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 68UH 1.1A 252MOHM SMD
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 2,190

Can ship immediately

Pricing:
  • 1$1.47

Quote It

Technical Details

  • Series:CDRH60D45B/T150
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:-
  • Material - Core:Ferrite
  • Inductance:68 µH
  • Tolerance:±20%
  • Current Rating (Amps):1.1 A
  • Current - Saturation (Isat):1.07A
  • Shielding:Shielded
  • DC Resistance (DCR):252mOhm



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.260" L x 0.248" W (6.60mm x 6.30mm)
  • Height - Seated (Max):0.189" (4.80mm)

Related Products


CDRH60D45BT150NP-2R2NC

FIXED IND 2.2UH 4.1A 19.5 MOHM

  • 1: $1.47000

SRR1260A-270M

FIXED IND 27UH 3.6A 45 MOHM SMD

SRR1260A-270M Datasheet
  • 1: $0.67320
  • 2400: $0.56100

SRR1260A-4R7Y

FIXED IND 4.7UH 6.8A 15.5MOHM SM

SRR1260A-4R7Y Datasheet
  • 1: $0.67320
  • 2400: $0.56100

SRR1260A-680M

FIXED IND 68UH 2.1A 110 MOHM SMD

SRR1260A-680M Datasheet
  • 1: $0.67320
  • 2400: $0.56100

PM4547.471NLT

FIXED IND 470NH 5.5A 28 MOHM SMD

  • 1: $1.69000

PM4547.681NLT

FIXED IND 680NH 4.5A 42 MOHM SMD

  • 1: $1.69000

PM4547.102NLT

FIXED IND 1UH 3.6A 50MOHM SMD

  • 1: $1.69000

PM4547.103NLT

FIXED IND 10UH 1.2A 522 MOHM SMD

  • 1: $1.69000

PM4547.332NLT

FIXED IND 3.3UH 2.5A 205 MOHM

  • 1: $1.69000

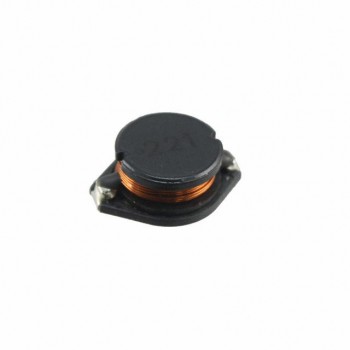

SDR1806-221KL
