In Stock: 2,020

Can ship immediately

Pricing:
  • 1$0.41
  • 2,000$0.17197
  • 4,000$0.16186
  • 6,000$0.1568
  • 10,000$0.15174
  • 50,000$0.14162

Quote It

Technical Details

  • Series:3650, Sigma Inductors
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:-
  • Inductance:3.3 nH
  • Tolerance:±5%
  • Current Rating (Amps):600 mA
  • Current - Saturation (Isat):-
  • Shielding:Unshielded
  • DC Resistance (DCR):80mOhm Max



  • Q @ Freq:50 @ 1.5GHz
  • Frequency - Self Resonant:6GHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:250 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:0805 (2012 Metric)
  • Size / Dimension:0.090" L x 0.068" W (2.29mm x 1.73mm)
  • Height - Seated (Max):0.060" (1.52mm)

Related Products


SRN3010-150M

FIXED IND 15UH 800MA 612MOHM SMD

SRN3010-150M Datasheet
  • 1: $0.41000
  • 2000: $ 0.14450
  • 4000: $0.13600

36502C5N6JTDG

FIXED IND 5.6NH 1A 150 MOHM SMD

36502C5N6JTDG Datasheet
  • 1: $0.41000
  • 2000: $ 0.17197

SRN3010-220M

FIXED IND 22UH 700MA 936MOHM SMD

SRN3010-220M Datasheet
  • 1: $0.41000
  • 2000: $ 0.14450
  • 4000: $0.13600

36502AR39JTDG

FIXED IND 390NH 290MA 1.5 OHM

36502AR39JTDG Datasheet
  • 1: $0.41000
  • 2000: $ 0.17197
  • 4000: $0.16186

ASMPM-0806-2R2M-T

FIXED IND 2.2UH 1.6A 168 MOHM

ASMPM-0806-2R2M-T Datasheet
  • 1: $0.41000

36501J51NJTDG

FIXED IND 51NH 600MA 280 MOHM

36501J51NJTDG Datasheet
  • 1: $0.41000
  • 2000: $ 0.17197
  • 4000: $0.16186

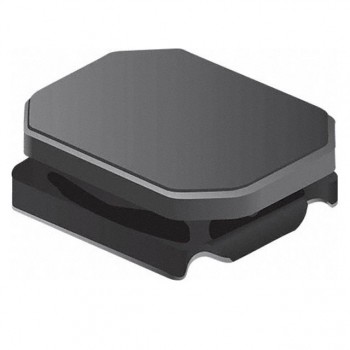

SRN3010-330M
