B82496C3229A000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2NH 1.5A 35 MOHM SMD
- CategoryFixed Inductors
- Datasheet B82496C3229A000 Datasheet
-
ECAD Model
- Share
In Stock: 1,620
Can ship immediately
Pricing:
- 1$0.46
- 4,000$0.16366
- 8,000$0.15403
- 12,000$0.14923
- 28,000$0.14441
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:2.2 nH
- Tolerance:±0.3nH
- Current Rating (Amps):1.5 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):35mOhm Max
- Q @ Freq:14 @ 100MHz
- Frequency - Self Resonant:10GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 150°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.035" (0.90mm)
Related Products
FIXED IND 39NH 320MA 550MOHM SMD
- 1: $0.42000
FIXED IND 1UH 1.35A 119 MOHM SMD
VLS201610ET-1R0N Datasheet- 1: $0.42000
- 2000: $ 0.16830
- 4000: $0.15895
FIXED IND 43NH 100MA 810MOHM SMD
- 1: $0.42000

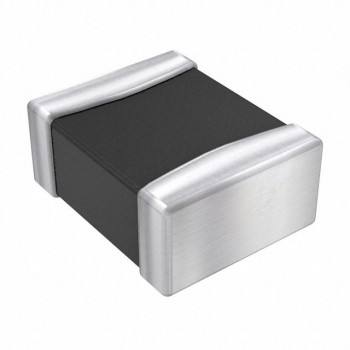

FIXED IND 1.2UH 3.2A 68 MOHM SMD
