ELJ-FCR56MF
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 150MA 1.1 OHM
- CategoryFixed Inductors
- Datasheet ELJ-FCR56MF Datasheet
-
ECAD Model
- Share
In Stock: 1,917
Can ship immediately
Pricing:
- 1$0.76
- 2,000$0.2465
- 4,000$0.232
- 6,000$0.22475
Quote It
Technical Details
- Series:FC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:560 nH
- Tolerance:±20%
- Current Rating (Amps):150 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.1Ohm Max
- Q @ Freq:25 @ 25.2MHz
- Frequency - Self Resonant:155MHz
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.071" (1.80mm)
Related Products
FIXED IND 120NH 25A 2.4MOHM SMD
- 1: $0.76000

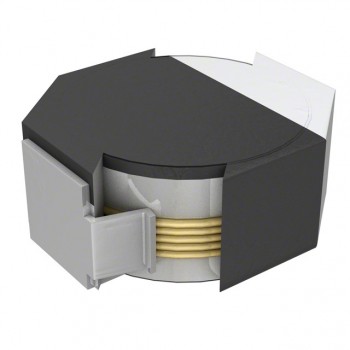

FIXED IND 1.5UH 1.2A 68 MOHM SMD
