• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 470NH 800MA 300 MOHM
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 2,077

Can ship immediately

Pricing:
  • 1$0.81
  • 4,000$0.541

Quote It

Technical Details

  • Series:WE-PMI
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Type:Multilayer
  • Material - Core:-
  • Inductance:470 nH
  • Tolerance:±20%
  • Current Rating (Amps):800 mA
  • Current - Saturation (Isat):200mA
  • Shielding:Shielded
  • DC Resistance (DCR):300mOhm



  • Q @ Freq:10 @ 1MHz
  • Frequency - Self Resonant:250MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:1 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:0603 (1608 Metric)
  • Supplier Device Package:0603 (1608 Metric)
  • Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height - Seated (Max):0.037" (0.95mm)

Related Products


AIUR-09-121K

FIXED IND 120UH 1.1A 420 MOHM TH

AIUR-09-121K Datasheet
  • 1: $0.81000
  • 10: $0.70875
  • 100: $0.50625

LQW03AW9N1J00D

FIXED IND 9.1NH 460MA 220 MOHM

LQW03AW9N1J00D Datasheet
  • 1: $0.82000
  • 10000: $ 0.30870
  • 30000: $0.29841

LQW03AW7N5J00D

FIXED IND 7.5NH 400MA 240 MOHM

LQW03AW7N5J00D Datasheet
  • 1: $0.82000
  • 10000: $ 0.30870
  • 30000: $0.29841

LQW03AW8N7J00D

FIXED IND 8.7NH 290MA 420 MOHM

LQW03AW8N7J00D Datasheet
  • 1: $0.82000
  • 10000: $ 0.30870
  • 30000: $0.29841

LQW03AW11NJ00D

FIXED IND 11NH 260MA 470 MOHM

LQW03AW11NJ00D Datasheet
  • 1: $0.82000
  • 10000: $ 0.30870
  • 30000: $0.29841

LQW03AW8N2J00D

FIXED IND 8.2NH 290MA 260 MOHM

LQW03AW8N2J00D Datasheet
  • 1: $0.82000
  • 10: $0.71469
  • 100: $0.51073

LQW03AW5N4J00D

FIXED IND 5.4NH 420MA 210 MOHM

LQW03AW5N4J00D Datasheet
  • 1: $0.82000
  • 10000: $ 0.30870
  • 30000: $0.29841

LQW03AW4N7J00D

FIXED IND 4.7NH 620MA 90 MOHM

LQW03AW4N7J00D Datasheet
  • 1: $0.82000
  • 10000: $ 0.30870
  • 30000: $0.29841

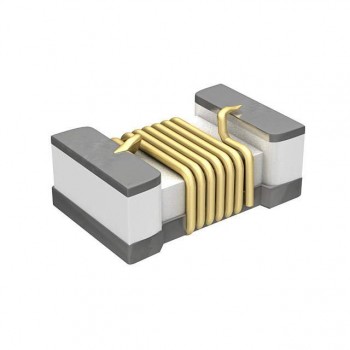

LQW03AW5N8J00D
