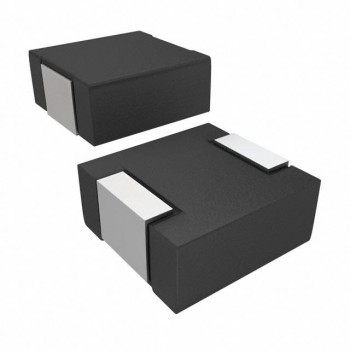

IHLP2525CZER5R6M5A
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.6UH 5.3A 45.6 MOHM
- CategoryFixed Inductors
- Datasheet IHLP2525CZER5R6M5A Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$0.62832
- 2,000$0.62832
- 4,000$0.60805
- 6,000$0.58778
Quote It
Technical Details
- Series:IHLP-2525CZ-5A
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:5.6 µH
- Tolerance:±20%
- Current Rating (Amps):5.3 A
- Current - Saturation (Isat):4.8A
- Shielding:Shielded
- DC Resistance (DCR):45.6mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:22.8MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
- Height - Seated (Max):0.118" (3.00mm)
