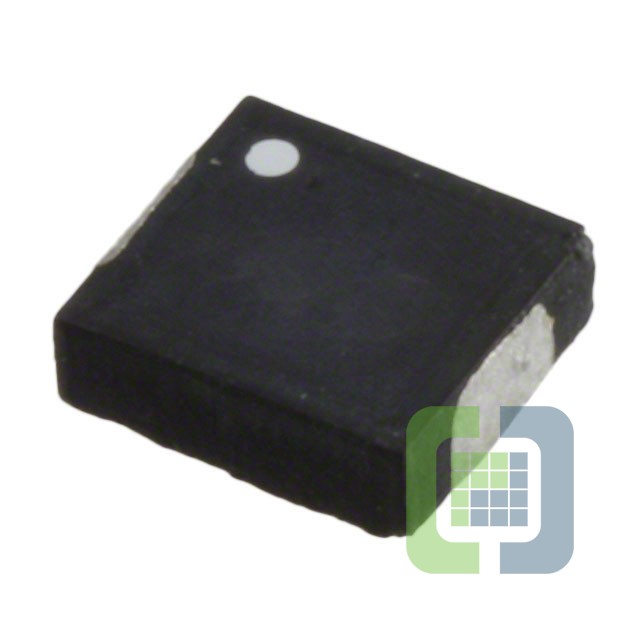

MPI4040R3-4R7-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 4.7UH 2.3A 92 MOHM SMD
- CategoryFixed Inductors
- Datasheet MPI4040R3-4R7-R Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$1.77
Quote It
Technical Details
- Series:MPI4040
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Metal Composite
- Inductance:4.7 µH
- Tolerance:±20%
- Current Rating (Amps):2.3 A
- Current - Saturation (Isat):4.8A
- Shielding:Shielded
- DC Resistance (DCR):92mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.175" L x 0.160" W (4.45mm x 4.06mm)
- Height - Seated (Max):0.073" (1.85mm)
