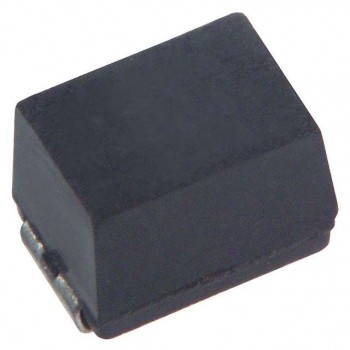

ELJ-FB2R7KF
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.7UH 400MA 610 MOHM
- CategoryFixed Inductors
- Datasheet ELJ-FB2R7KF Datasheet
-
ECAD Model
- Share
In Stock: 157
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FB
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:2.7 µH
- Tolerance:±10%
- Current Rating (Amps):400 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):610mOhm Max
- Q @ Freq:50 @ 7.96MHz
- Frequency - Self Resonant:43MHz
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
