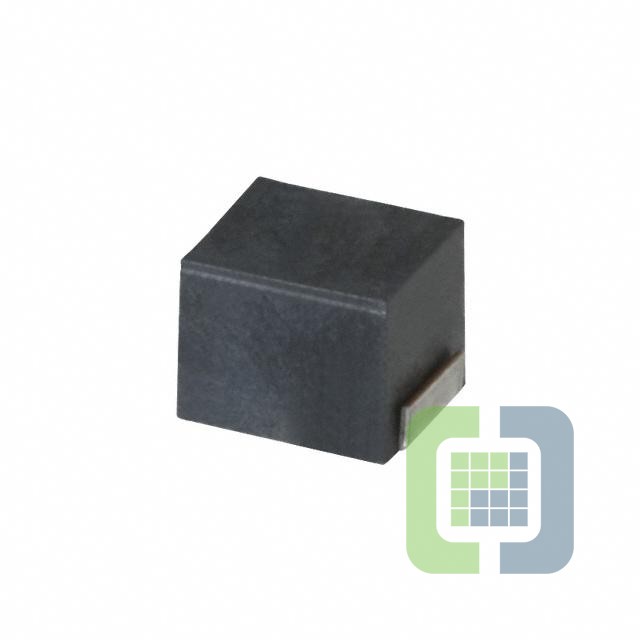

NLC252018T-2R2M

Technical Details

• Series:NLC
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:-
• Material - Core:-
• Inductance:2.2 µH
• Tolerance:±20%
• Current Rating (Amps):390 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):500mOhm

• Q @ Freq:20 @ 7.96MHz
• Frequency - Self Resonant:95MHz
• Ratings:-
• Operating Temperature:-20°C ~ 85°C
• Inductance Frequency - Test:7.96 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
• Height - Seated (Max):0.071" (1.80mm)
