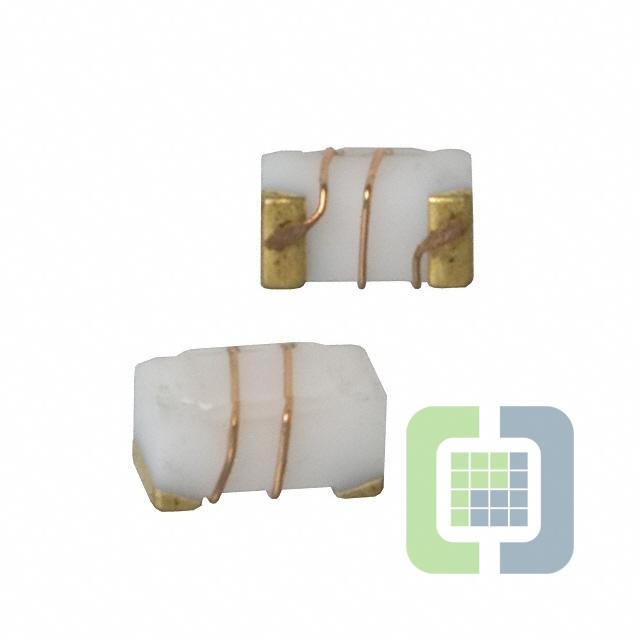

PE-0603CDR12JTT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120NH 300MA 650 MOHM
- CategoryFixed Inductors
- Datasheet PE-0603CDR12JTT Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:0603CD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:120 nH
- Tolerance:±5%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):650mOhm Max
- Q @ Freq:32 @ 150MHz
- Frequency - Self Resonant:1.3GHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:150 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.071" L x 0.049" W (1.80mm x 1.24mm)
- Height - Seated (Max):0.040" (1.02mm)
