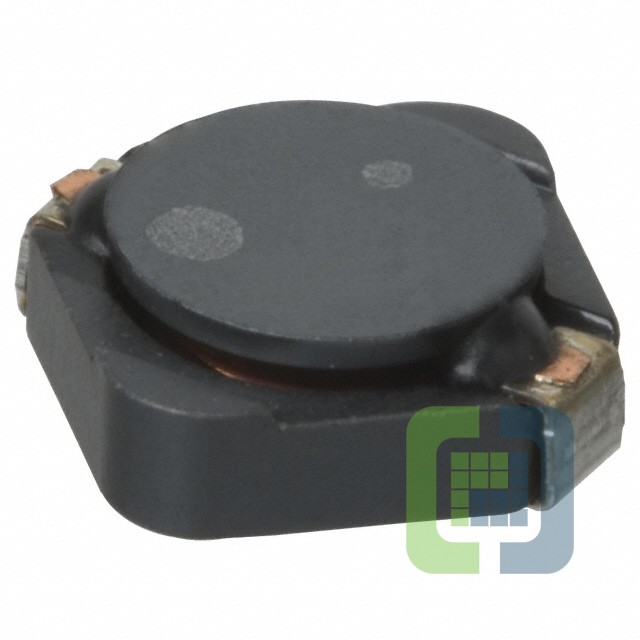

NP04SZB150M

Technical Details

• Series:N, P Type
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:-
• Material - Core:Ferrite
• Inductance:15 µH
• Tolerance:±20%
• Current Rating (Amps):950 mA
• Current - Saturation (Isat):950mA
• Shielding:Shielded
• DC Resistance (DCR):250mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:12MHz
• Ratings:-
• Operating Temperature:-25°C ~ 105°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
• Height - Seated (Max):0.079" (2.00mm)
