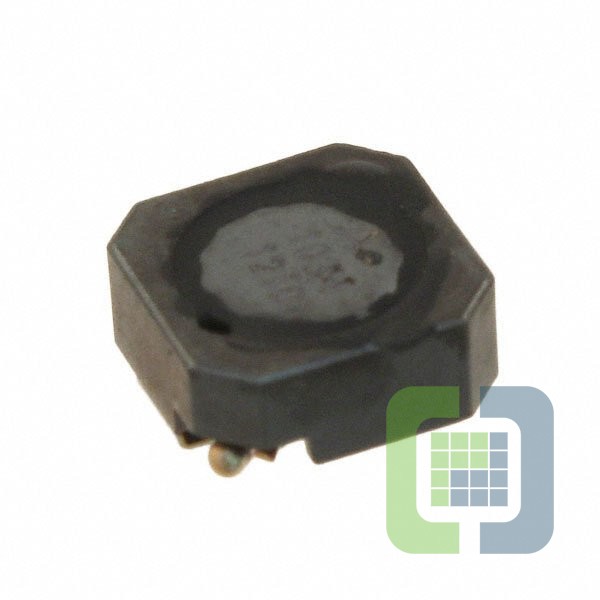

B82462G2334M

Technical Details

• Series:B82462G2
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:330 µH
• Tolerance:±20%
• Current Rating (Amps):220 mA
• Current - Saturation (Isat):200mA
• Shielding:Shielded
• DC Resistance (DCR):3.25Ohm Max

• Q @ Freq:-
• Frequency - Self Resonant:100kHz
• Ratings:AEC-Q200
• Operating Temperature:-55°C ~ 150°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.248" L x 0.248" W (6.30mm x 6.30mm)
• Height - Seated (Max):0.098" (2.50mm)
