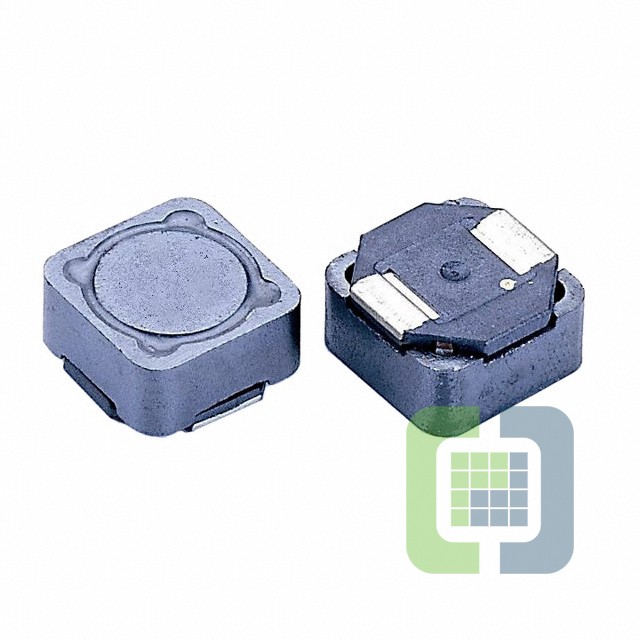

SCRH125B-271

Technical Details

• Series:SCRH125B
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:270 µH
• Tolerance:±20%
• Current Rating (Amps):1.16 A
• Current - Saturation (Isat):750mA
• Shielding:Shielded
• DC Resistance (DCR):460mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
• Height - Seated (Max):0.244" (6.20mm)
