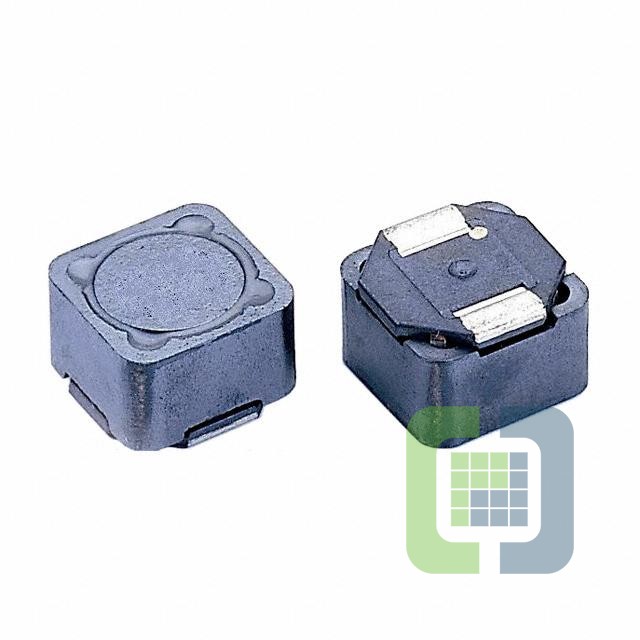

SCRH127B-471

Technical Details

• Series:SCRH127B
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:470 µH
• Tolerance:±20%
• Current Rating (Amps):920 mA
• Current - Saturation (Isat):790mA
• Shielding:Shielded
• DC Resistance (DCR):980mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
• Height - Seated (Max):0.315" (8.00mm)
