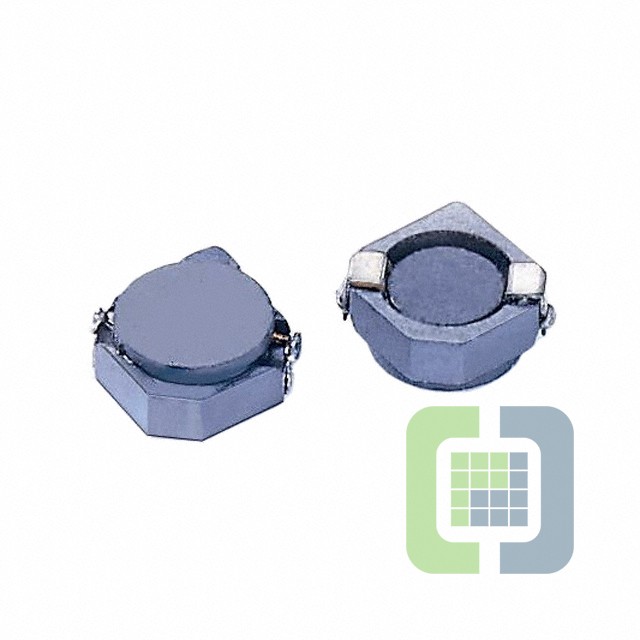

SCRH2D14-2R7

Technical Details

• Series:SCRH2D14
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:2.7 µH
• Tolerance:±30%
• Current Rating (Amps):1.22 A
• Current - Saturation (Isat):1.35A
• Shielding:Shielded
• DC Resistance (DCR):114mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.126" L x 0.126" W (3.20mm x 3.20mm)
• Height - Seated (Max):0.061" (1.55mm)
