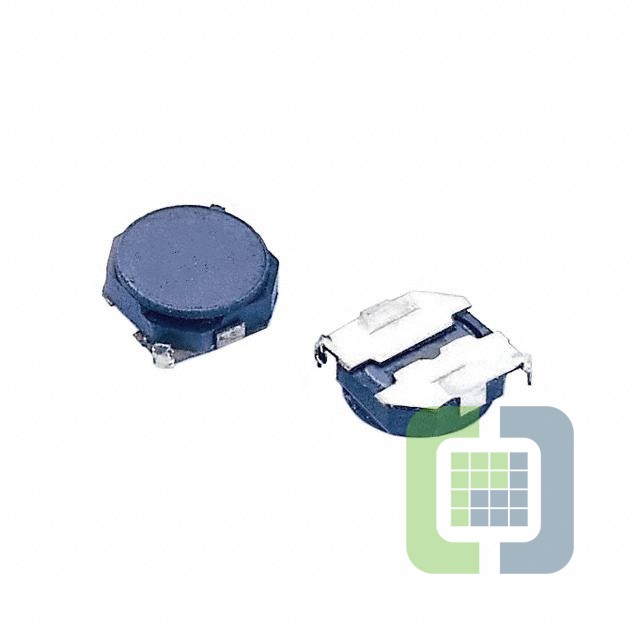

SCRH4D14R-560

Technical Details

• Series:SCRH4D14R
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:-
• Material - Core:-
• Inductance:56 µH
• Tolerance:±30%
• Current Rating (Amps):370 mA
• Current - Saturation (Isat):210mA
• Shielding:Shielded
• DC Resistance (DCR):1.8Ohm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.161" L x 0.161" W (4.10mm x 4.10mm)
• Height - Seated (Max):0.059" (1.50mm)
