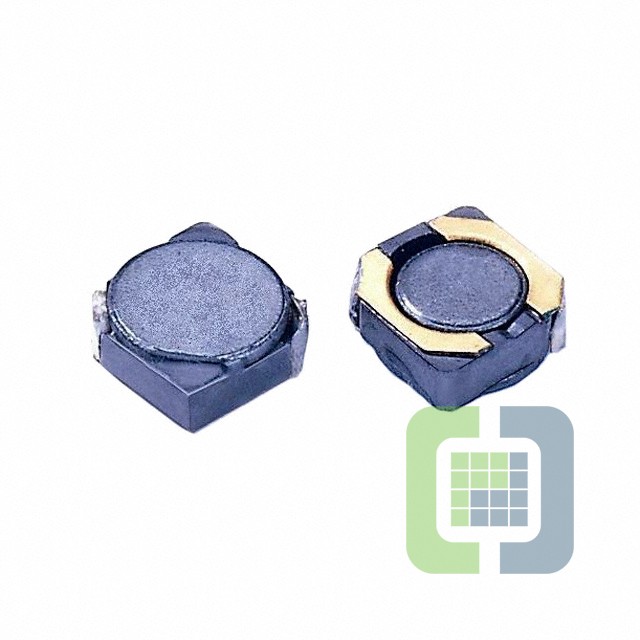

SCRH4D18-8R2

Technical Details

• Series:SCRH4D18
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:8.2 µH
• Tolerance:±30%
• Current Rating (Amps):1.1 A
• Current - Saturation (Isat):680mA
• Shielding:Shielded
• DC Resistance (DCR):190mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
• Height - Seated (Max):0.079" (2.00mm)
