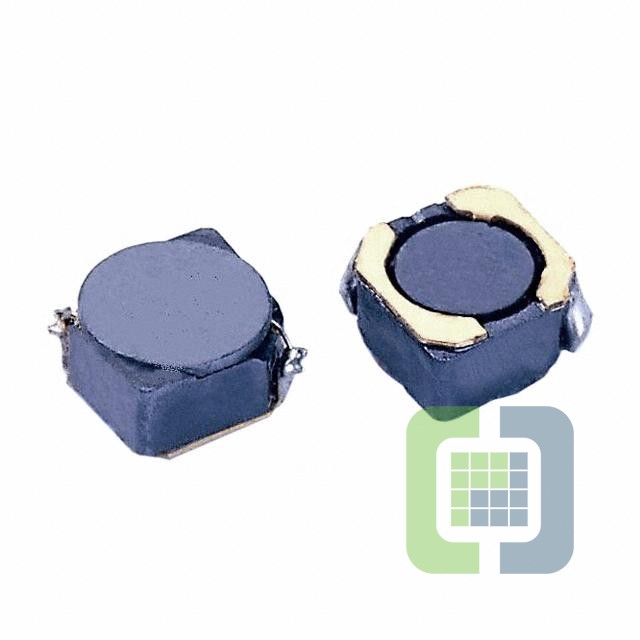

SCRH5D28-121

Technical Details

• Series:SCRH5D28
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:120 µH
• Tolerance:±30%
• Current Rating (Amps):750 mA
• Current - Saturation (Isat):310mA
• Shielding:Shielded
• DC Resistance (DCR):850mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:10 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.244" L x 0.244" W (6.20mm x 6.20mm)
• Height - Seated (Max):0.118" (3.00mm)
