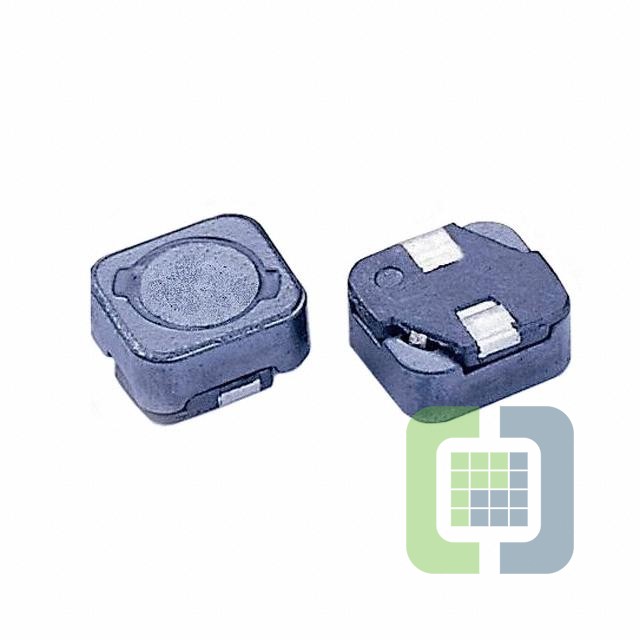

SCRH62B-7R1

Technical Details

• Series:SCRH62B
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:-
• Material - Core:-
• Inductance:7.1 µH
• Tolerance:-20%, +40%
• Current Rating (Amps):1.53 A
• Current - Saturation (Isat):1.22A
• Shielding:Shielded
• DC Resistance (DCR):110mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.256" L x 0.252" W (6.50mm x 6.40mm)
• Height - Seated (Max):0.126" (3.20mm)
