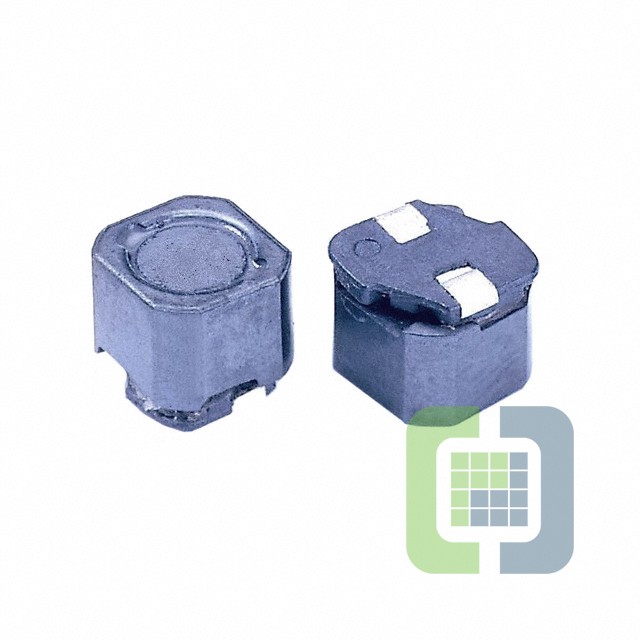

SCRH64B-220
Signal Transformer
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 910MA 270 MOHM
- CategoryFixed Inductors
- Datasheet SCRH64B-220 Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SCRH64B
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:-
- Material - Core:-
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):910 mA
- Current - Saturation (Isat):910mA
- Shielding:Shielded
- DC Resistance (DCR):270mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.256" L x 0.252" W (6.50mm x 6.40mm)
- Height - Seated (Max):0.205" (5.20mm)
