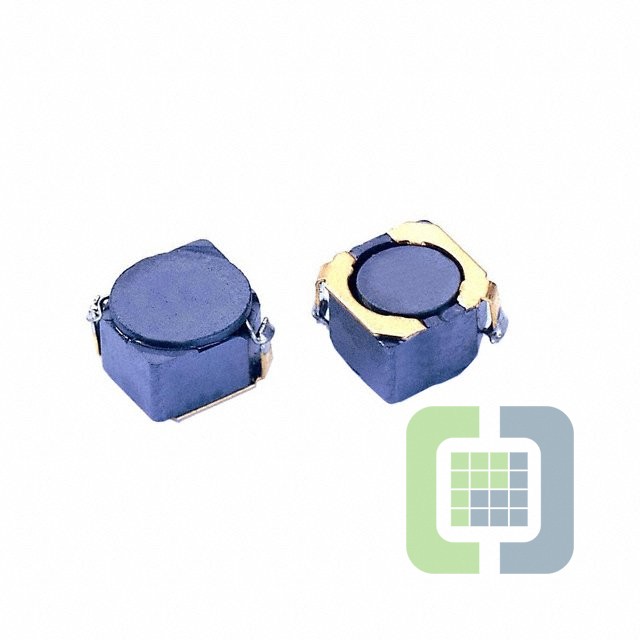

SCRH6D38-8R7

Technical Details

• Series:SCRH6D38
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:8.7 µH
• Tolerance:±30%
• Current Rating (Amps):2.2 A
• Current - Saturation (Isat):2.2A
• Shielding:Shielded
• DC Resistance (DCR):34mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:10 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.283" L x 0.283" W (7.20mm x 7.20mm)
• Height - Seated (Max):0.157" (4.00mm)
