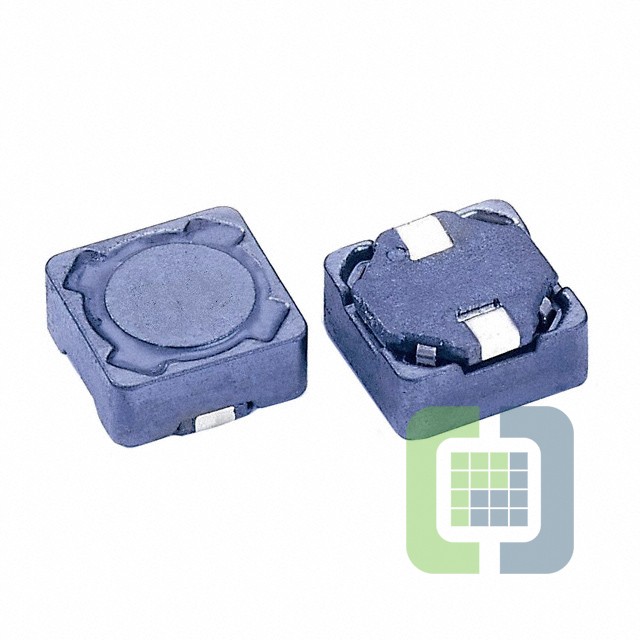

SCRH73B-471

Technical Details

• Series:SCRH73B
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:470 µH
• Tolerance:±20%
• Current Rating (Amps):240 mA
• Current - Saturation (Isat):240mA
• Shielding:Shielded
• DC Resistance (DCR):4.18Ohm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.307" L x 0.307" W (7.80mm x 7.80mm)
• Height - Seated (Max):0.138" (3.50mm)
