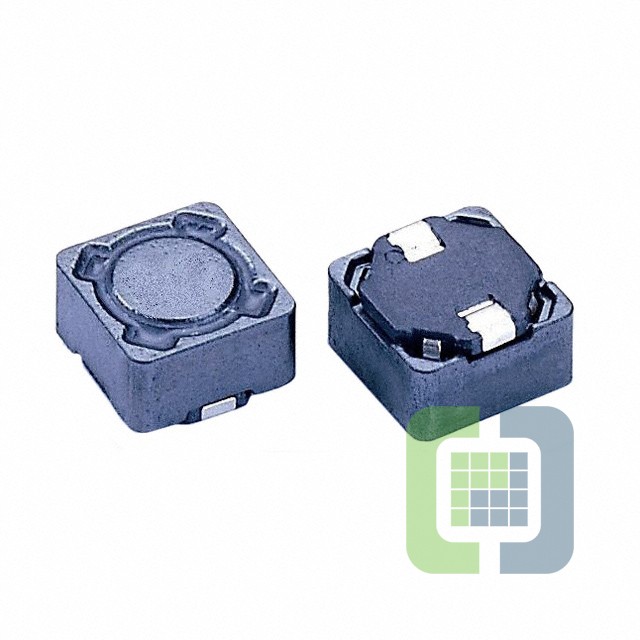

SCRH74B-680

Technical Details

• Series:SCRH74B
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:68 µH
• Tolerance:±20%
• Current Rating (Amps):690 mA
• Current - Saturation (Isat):690mA
• Shielding:Shielded
• DC Resistance (DCR):380mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.307" L x 0.307" W (7.80mm x 7.80mm)
• Height - Seated (Max):0.177" (4.50mm)
