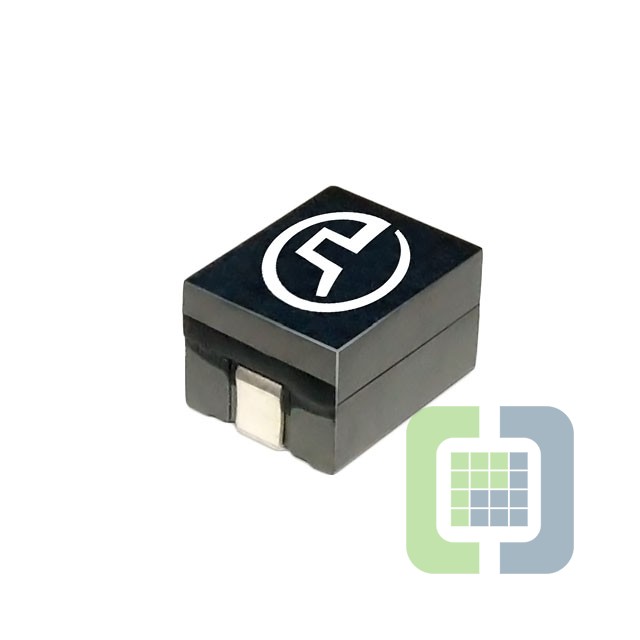

PA2202.121NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120NH 36A 0.48 MOHM
- CategoryFixed Inductors
- Datasheet PA2202.121NLT Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PA2202.XXXNL
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:-
- Material - Core:-
- Inductance:120 nH
- Tolerance:±15%
- Current Rating (Amps):36 A
- Current - Saturation (Isat):84A
- Shielding:Unshielded
- DC Resistance (DCR):0.48mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:-
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.476" L x 0.394" W (12.10mm x 10.00mm)
- Height - Seated (Max):0.236" (6.00mm)
