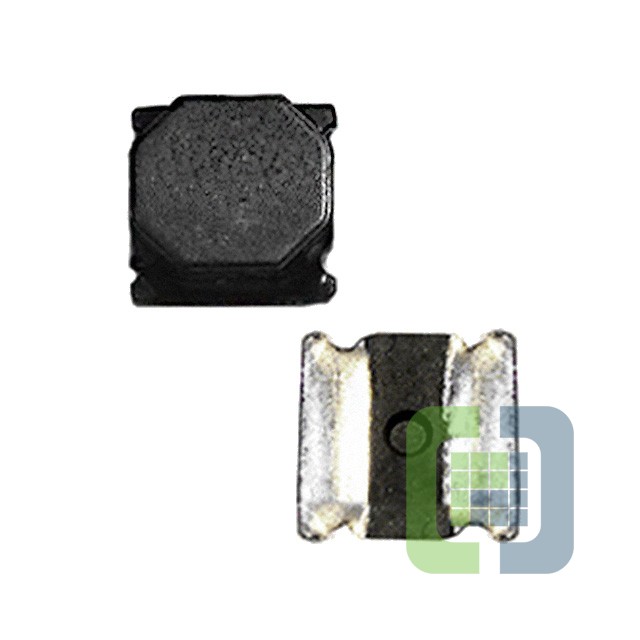

ASPI-2410-R68N-T2
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 680NH 2.1A 61 MOHM SMD
- CategoryFixed Inductors
- Datasheet ASPI-2410-R68N-T2 Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ASPI-2410
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:680 nH
- Tolerance:±30%
- Current Rating (Amps):2.1 A
- Current - Saturation (Isat):2.75A
- Shielding:Shielded
- DC Resistance (DCR):61mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:110MHz
- Ratings:-
- Operating Temperature:-25°C ~ 120°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.039" (1.00mm)
