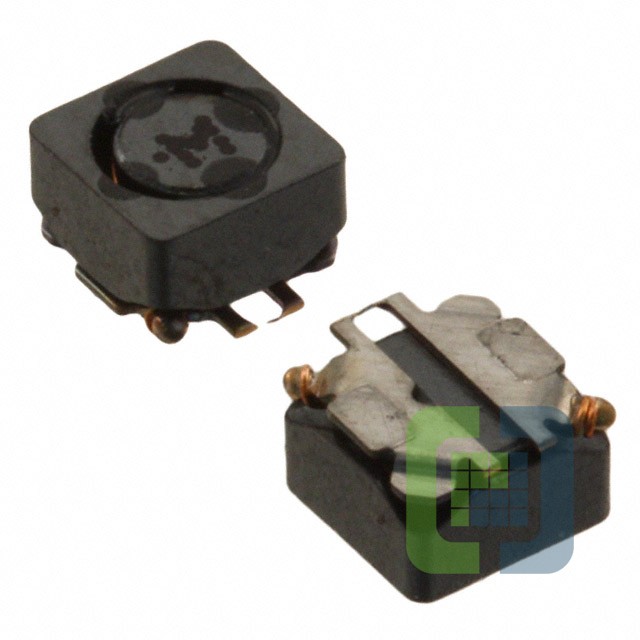

ASPI-0320S-2R2N-T3

Technical Details

• Series:ASPI-0320S
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:2.2 µH
• Tolerance:±30%
• Current Rating (Amps):1.33 A
• Current - Saturation (Isat):1.3A
• Shielding:Shielded
• DC Resistance (DCR):106mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-25°C ~ 100°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.126" L x 0.126" W (3.20mm x 3.20mm)
• Height - Seated (Max):0.079" (2.00mm)
