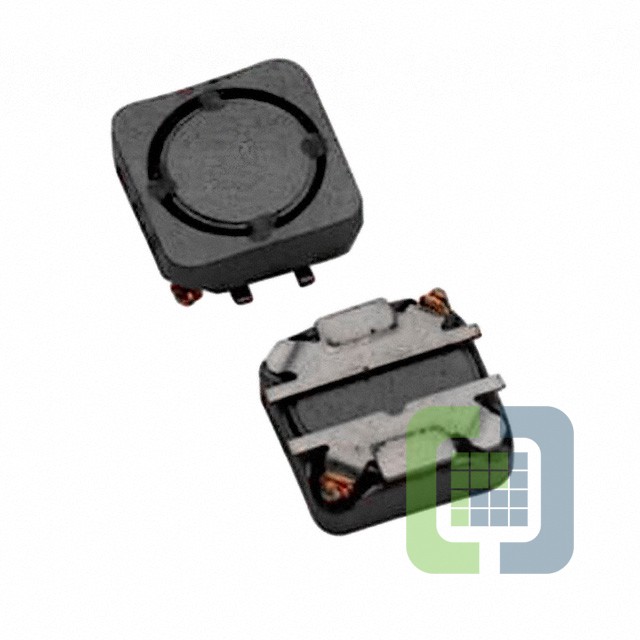

ASPI-0418S-150M-T3
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 15UH 850MA 276 MOHM
- CategoryFixed Inductors
- Datasheet ASPI-0418S-150M-T3 Datasheet
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ASPI-0418S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:15 µH
- Tolerance:±20%
- Current Rating (Amps):850 mA
- Current - Saturation (Isat):700mA
- Shielding:Shielded
- DC Resistance (DCR):276mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-25°C ~ 100°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.165" L x 0.165" W (4.20mm x 4.20mm)
- Height - Seated (Max):0.071" (1.80mm)
