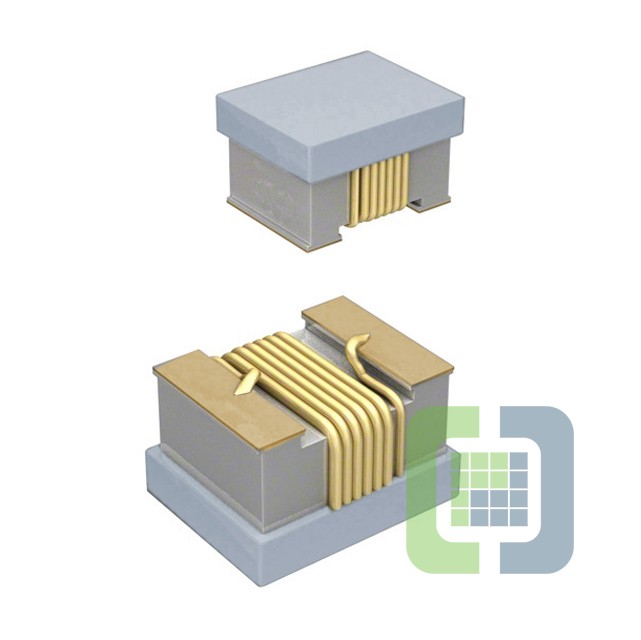

AISM-1812-6R8K-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8UH 285MA 1.2 OHM
- CategoryFixed Inductors
- Datasheet AISM-1812-6R8K-T Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AISM-1812
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:6.8 µH
- Tolerance:±10%
- Current Rating (Amps):285 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.2Ohm Max
- Q @ Freq:50 @ 7.96MHz
- Frequency - Self Resonant:27MHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.110" (2.80mm)
