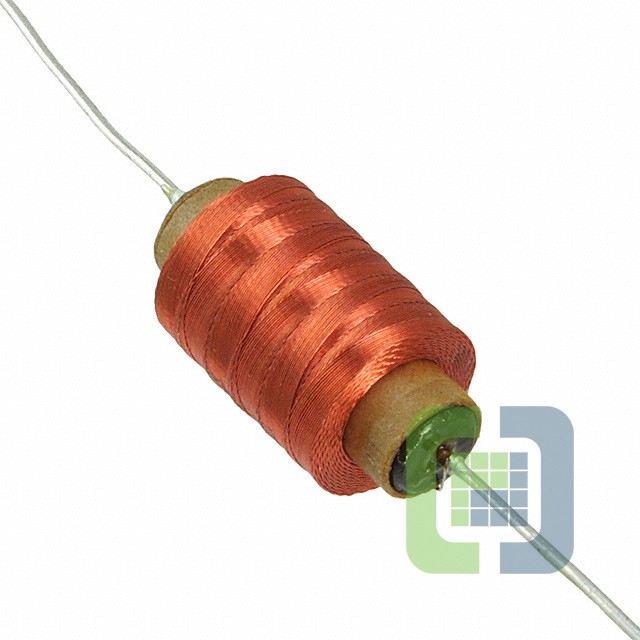

70F151AF-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 150MH 44MA 328 OHM TH
- CategoryFixed Inductors
- Datasheet 70F151AF-RC Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:70F
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:150 mH
- Tolerance:±5%
- Current Rating (Amps):44 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):328Ohm Max
- Q @ Freq:49 @ 25kHz
- Frequency - Self Resonant:77kHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:25 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.500" Dia x 0.880" L (12.70mm x 22.35mm)
- Height - Seated (Max):-
