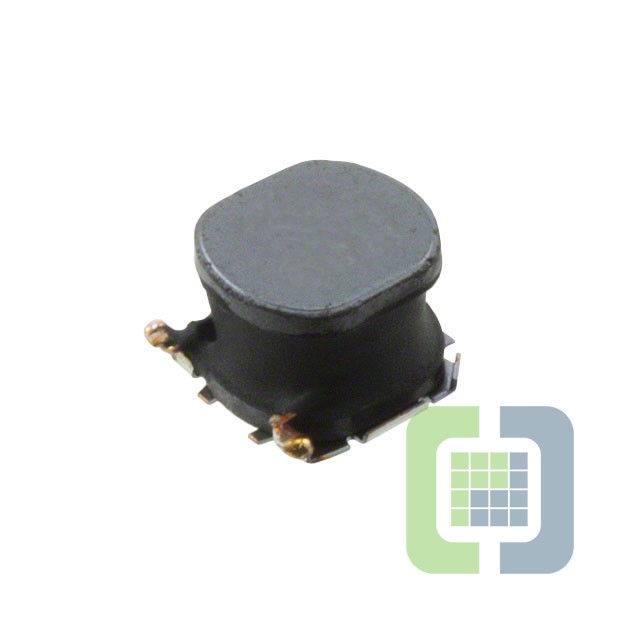

VLP6045LT-6R8M
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8UH 3.3A 57 MOHM SMD
- CategoryFixed Inductors
- Datasheet VLP6045LT-6R8M Datasheet
-
ECAD Model
- Share
In Stock: 157
Can ship immediately
Pricing:
- 1$0.51
- 1,000$0.2176
- 3,000$0.2048
- 5,000$0.1984
- 10,000$0.192
- 25,000$0.1856
- 50,000$0.1792
Quote It
Technical Details
- Series:VLP
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:6.8 µH
- Tolerance:±20%
- Current Rating (Amps):3.3 A
- Current - Saturation (Isat):3.8A
- Shielding:Shielded
- DC Resistance (DCR):57mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.268" L x 0.268" W (6.80mm x 6.80mm)
- Height - Seated (Max):0.177" (4.50mm)
