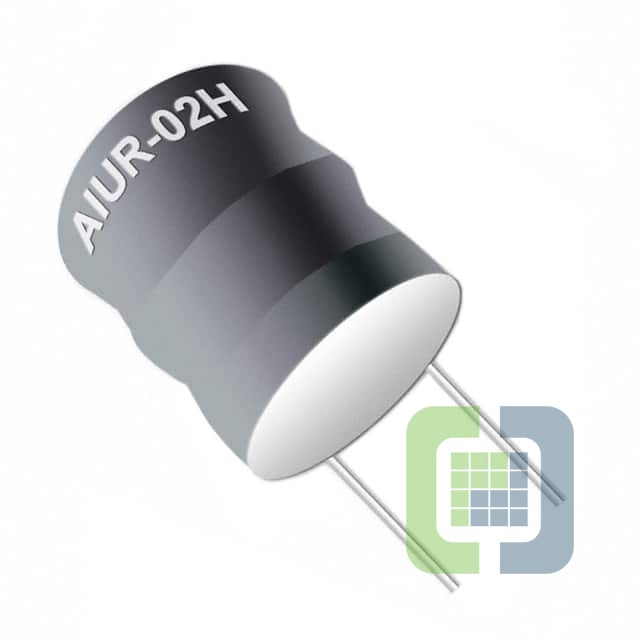

AIUR-02H-2R2M
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 3.2A 26 MOHM TH
- CategoryFixed Inductors
- Datasheet AIUR-02H-2R2M Datasheet
-
ECAD Model
- Share
In Stock: 171
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AIUR-02H
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):3.2 A
- Current - Saturation (Isat):6.3A
- Shielding:Unshielded
- DC Resistance (DCR):26mOhm Max
- Q @ Freq:15 @ 7.96MHz
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-25°C ~ 85°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.830" Dia (21.08mm)
- Height - Seated (Max):0.831" (21.10mm)
