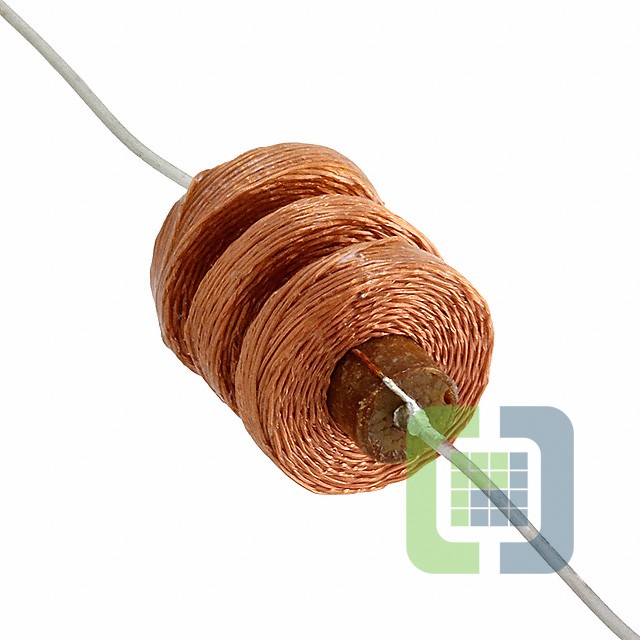

4652-RC

Technical Details

• Series:4600
• Package:Bulk
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Phenolic
• Inductance:1 mH
• Tolerance:±5%
• Current Rating (Amps):160 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):19Ohm Max

• Q @ Freq:59 @ 252kHz
• Frequency - Self Resonant:3.7MHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:252 kHz
• Features:-
• Mounting Type:Through Hole
• Package / Case:Axial
• Supplier Device Package:-
• Size / Dimension:0.560" Dia x 0.875" L (14.22mm x 22.22mm)
• Height - Seated (Max):-
