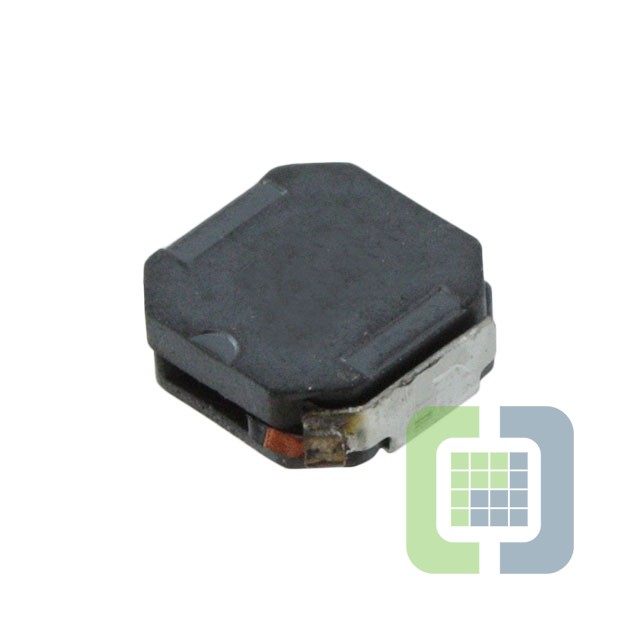

CDPH45D13FHF-1R0NC
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 2.45A 53 MOHM SMD
- CategoryFixed Inductors
- Datasheet CDPH45D13FHF-1R0NC Datasheet
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CDPH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:-
- Material - Core:Ferrite
- Inductance:1 µH
- Tolerance:±30%
- Current Rating (Amps):2.45 A
- Current - Saturation (Isat):3.12A
- Shielding:Shielded
- DC Resistance (DCR):53mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.185" L x 0.177" W (4.70mm x 4.50mm)
- Height - Seated (Max):0.055" (1.40mm)
