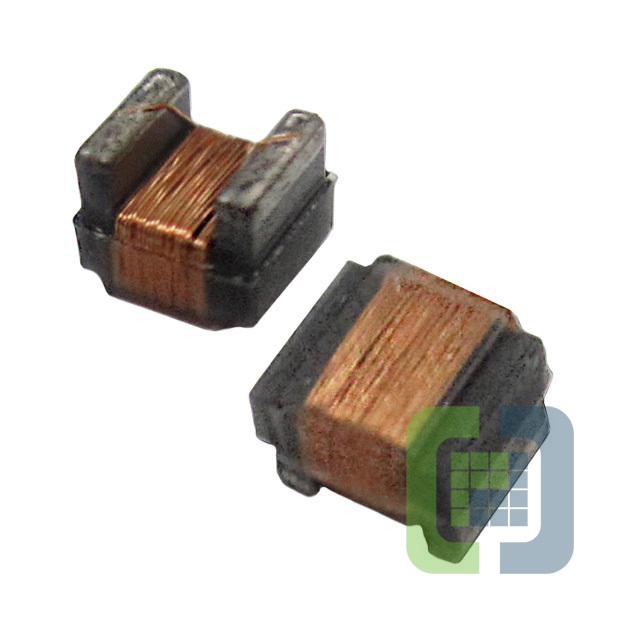

AISC-0805HQ-2N5J-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.5NH 1.6A 20 MOHM SMD
- CategoryFixed Inductors
- Datasheet AISC-0805HQ-2N5J-T Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AISC-0805HQ
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:2.5 nH
- Tolerance:±5%
- Current Rating (Amps):1.6 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):20mOhm Max
- Q @ Freq:80 @ 1.5GHz
- Frequency - Self Resonant:6GHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:0805
- Size / Dimension:0.090" L x 0.068" W (2.29mm x 1.73mm)
- Height - Seated (Max):0.060" (1.52mm)
