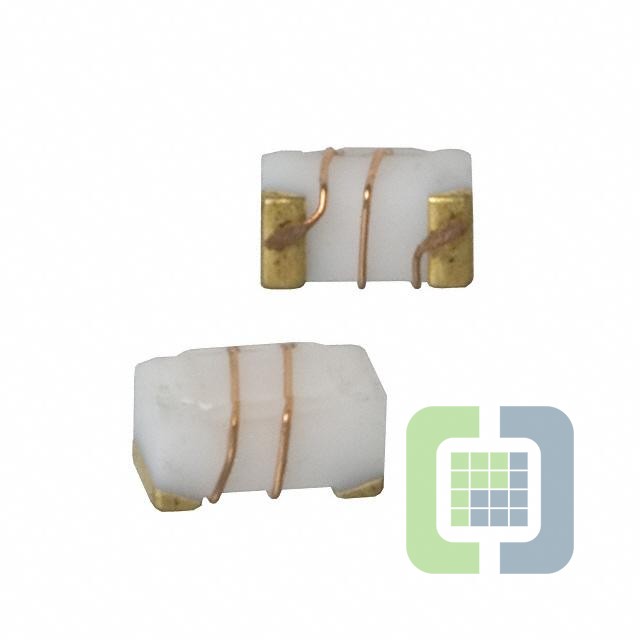

PE-0603CD510JTT

Technical Details

• Series:0603CD
• Package:Bulk
• Part Status:Active
• Type:Wirewound
• Material - Core:Ceramic
• Inductance:51 nH
• Tolerance:±5%
• Current Rating (Amps):600 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):270mOhm Max

• Q @ Freq:35 @ 200MHz
• Frequency - Self Resonant:1.9GHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:200 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0402 (1005 Metric)
• Supplier Device Package:0402
• Size / Dimension:0.047" L x 0.026" W (1.19mm x 0.66mm)
• Height - Seated (Max):0.024" (0.61mm)
