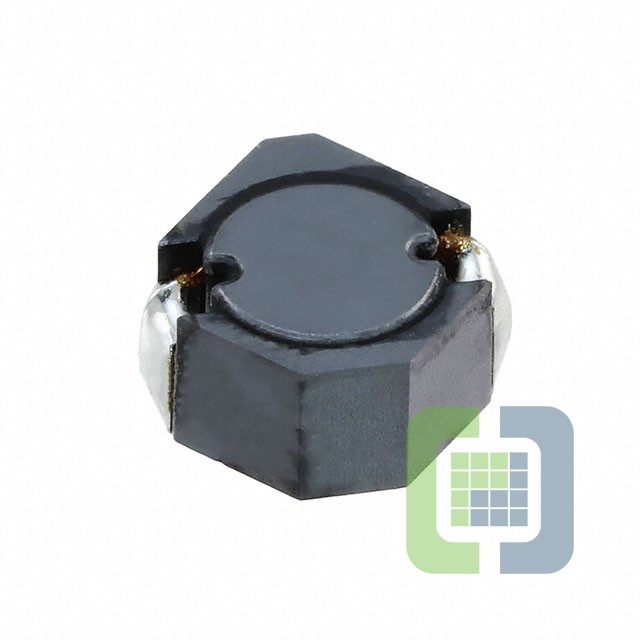

ELL-ATP220MB
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 2.5A 38MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:P
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):2.5 A
- Current - Saturation (Isat):2.2A
- Shielding:Shielded
- DC Resistance (DCR):38mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard, Corner Terminals
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
- Height - Seated (Max):0.177" (4.50mm)
