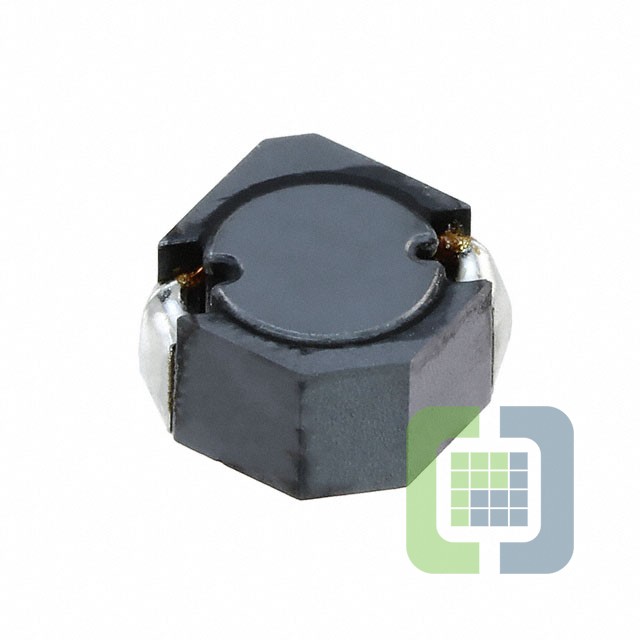

ELL-ATP6R8NB

Technical Details

• Series:P
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:-
• Inductance:6.8 µH
• Tolerance:±30%
• Current Rating (Amps):4 A
• Current - Saturation (Isat):4A
• Shielding:Shielded
• DC Resistance (DCR):15mOhm

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard, Corner Terminals
• Supplier Device Package:-
• Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
• Height - Seated (Max):0.177" (4.50mm)
