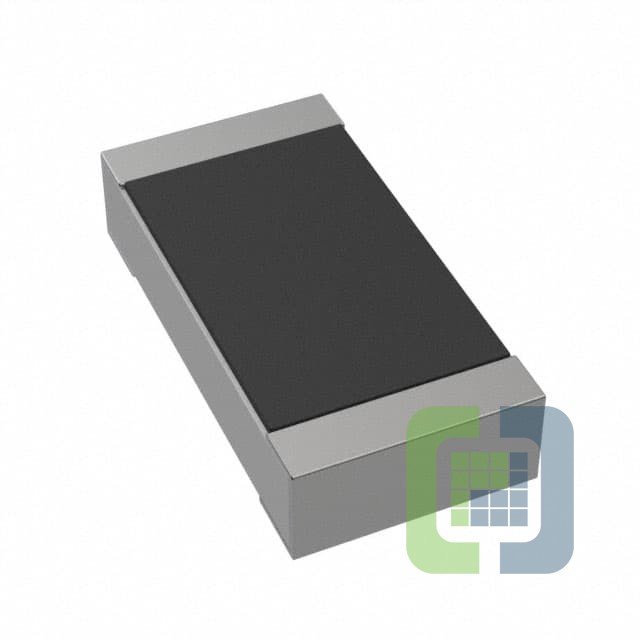

CML0510-1N5-CNH

Technical Details

• Series:CML0510
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:Thin Film
• Material - Core:-
• Inductance:1.5 nH
• Tolerance:±0.2nH
• Current Rating (Amps):1.2 A
• Current - Saturation (Isat):-
• Shielding:Shielded
• DC Resistance (DCR):100mOhm Max

• Q @ Freq:15 @ 100MHz
• Frequency - Self Resonant:10GHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0402 (1005 Metric)
• Supplier Device Package:0402
• Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
• Height - Seated (Max):0.020" (0.50mm)
