EEV-HD1H1R0R
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEV-HD1H1R0R Datasheet
-
ECAD Model
- Share
In Stock: 14,974
Can ship immediately
Pricing:
- 1$0.56
- 2,000$0.10383
- 4,000$0.08573
- 6,000$0.0741
- 10,000$0.06377
Quote It
Technical Details
- Series:HD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Capacitance:1 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:7 mA @ 120 Hz
- Ripple Current @ High Frequency:11.9 mA @ 10 kHz
- Impedance:12 Ohms
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.228" (5.80mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

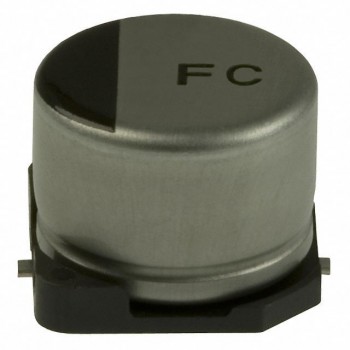

CAP 47 UF 20% 10 V
- 1: $0.12000
- 2000: $0.07204

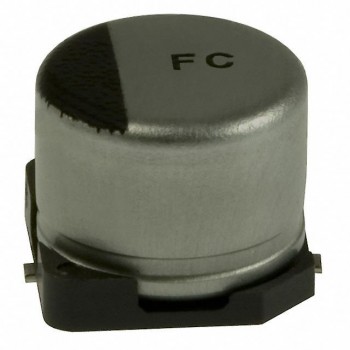

CAP 68 UF 20% 25 V
- 1: $0.12000
- 1500: $0.06987

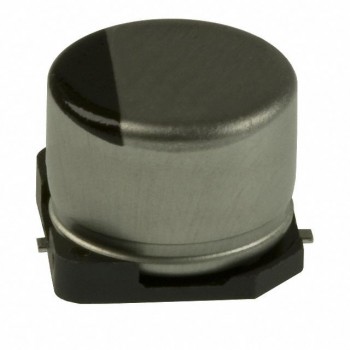

CAP ALUM 10UF 20% 63V RADIAL
